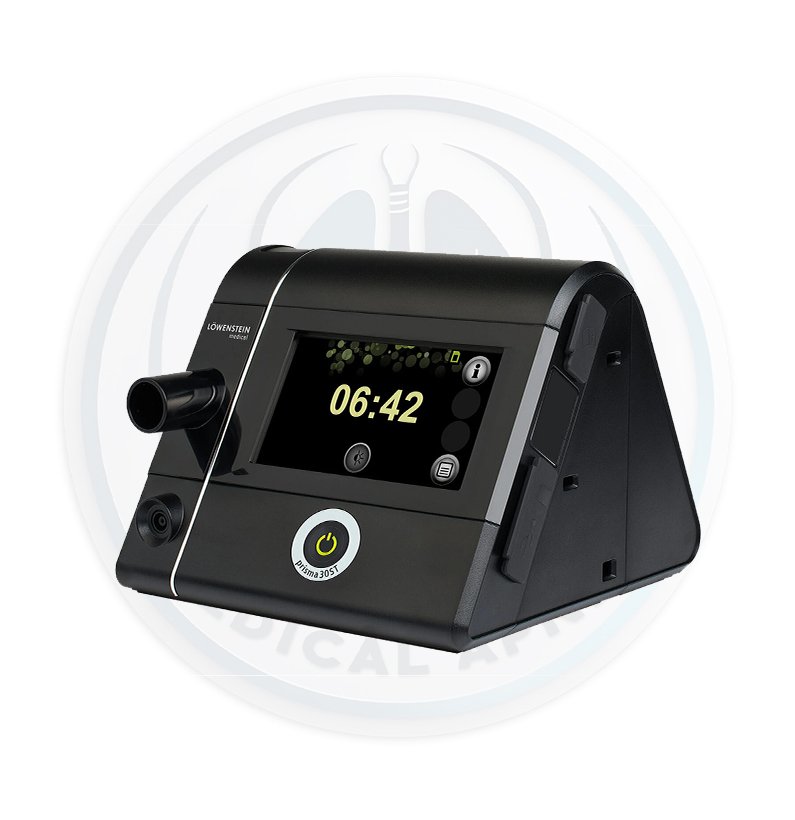

prisma30ST

prisma30ST is the means of choice for patients who suffer from respiratory insu ciency, e.g., position-dependent hypo ventilation and/or COPD, and concurrent SDB (Sleep-Disor- able target volume, autoEPAP and backup frequency, prisma30ST provides comfortable ventilation that quickly le-ads to lasting treatment success.

Major features

• Ventilationmodes CPAP, APAP, S, T, S/T, autoS/T, aPCV
• Broad pressure range (4 – 30 hPa) and several adjustable parameters for greater flexibility in therapy settings
• Target volume assured in every position
• With automatic or permanently set back up frequency and optional adjustable alarms for leaks, low minute volume, low tidal volume and apnea
• SCOPES (indication-specific pre-settings) for COPD and hypoventilation with the option of making adjustments at any time
• Identification of periodic breathing, RERA, snoring, hypo- pnea, apnea and flow limitations
• Optional autoTrigger (Trigger IN and Trigger EX)
• Adaptive inspiratory pressure rise (Ramp IN) and expiratory pressure reduction (Ramp EX)
• High resolution therapy data for up to 14 days and detailed statistics for 366 days
• With SD card and USB port, Digital prisma connection (DPC)
• Eight clearly identified analog signals for PSG feed
• Remote management (prismaTSlab) via LAN with therapy software prismaTS
• Separate operation menus for experts and patients allow navigation tailored to user‘s
• Comfort functions such as softSTART and autoSTART-STOP
• Heated breathing tube prismaHYBERNITE
• Easy-to-use accessories
